Receive Alert Notifications via Pagerduty

Getting started

Last9 can send alert notifications and resolutions to Pagerduty. This document lists the step by step instructions on how to setup Pagerduty integration with Last9 and start receiving alert notifications.

The Pagerduty Events V2 API is a highly reliable, highly available asynchronous API that ingests machine events from monitoring tools and other systems like Last9. Events sent to this API are ultimately routed to a PagerDuty service and processed.

Setting up an Events API V2 integration in Pagerduty

Create an integration on any PagerDuty service

Select Events API V2 as the Integration Type.

Copy the integration key and keep it handy as we will use it while creating a notification channel in Last9.

Setting up a notification channel in Last9

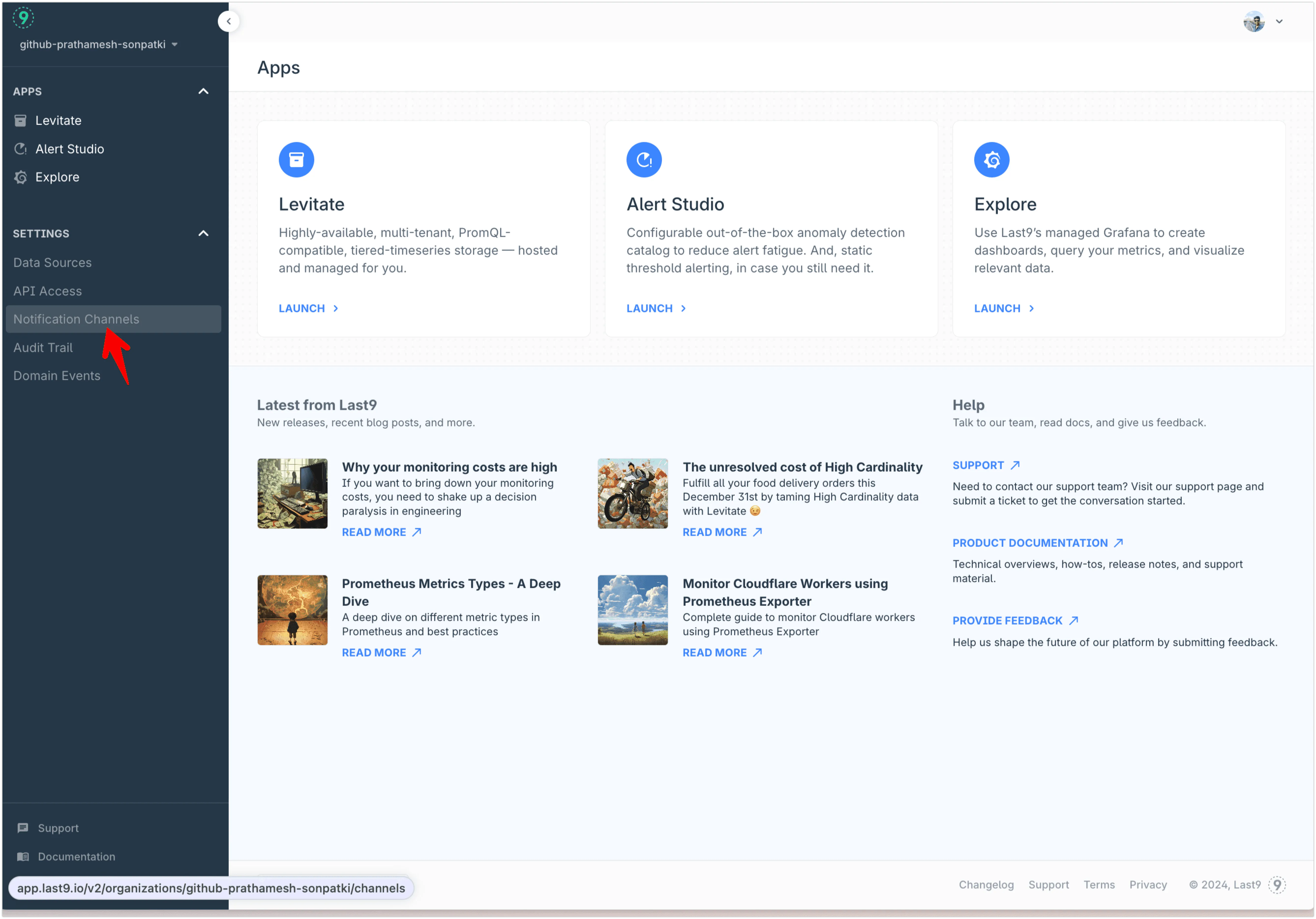

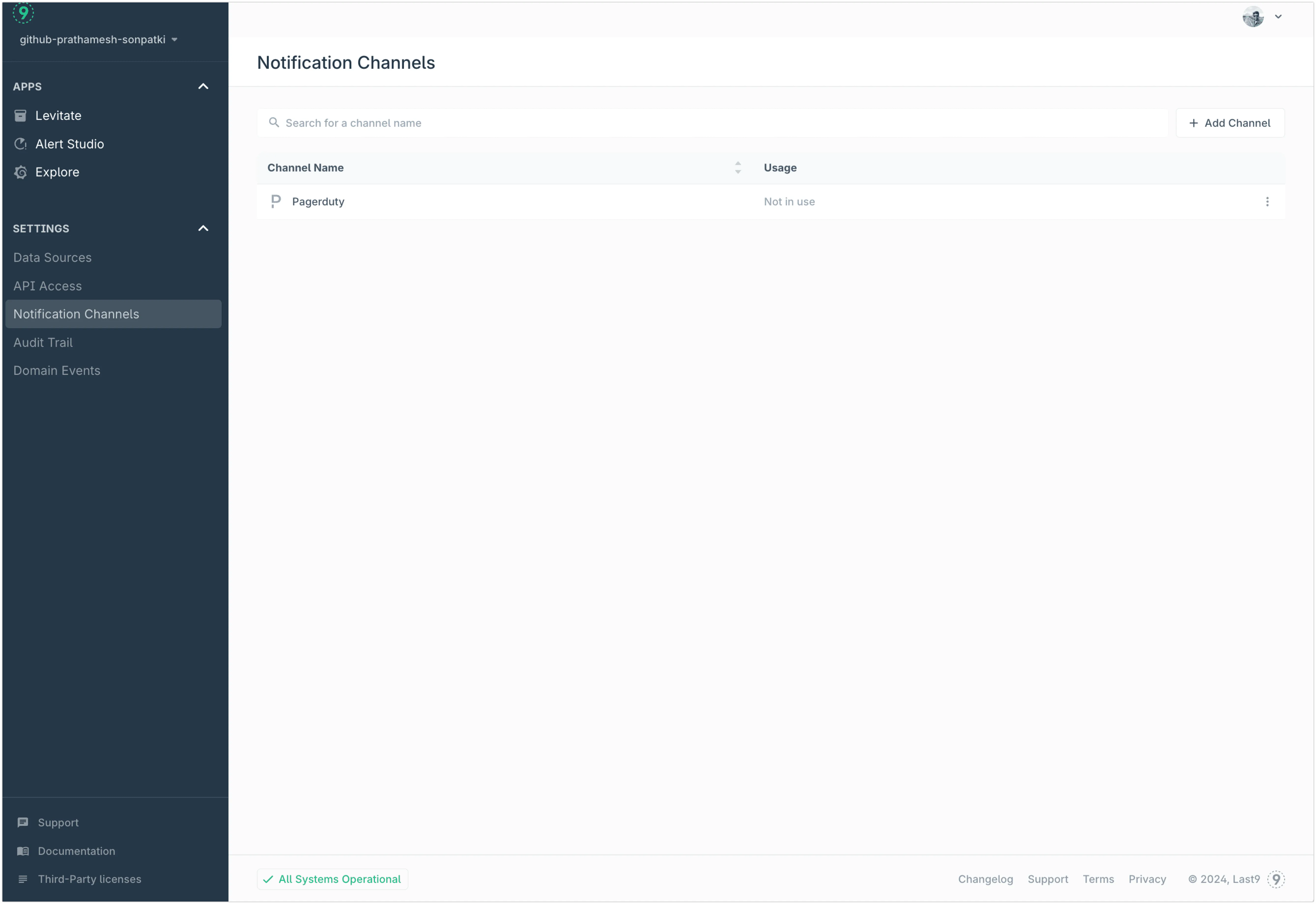

1. In Notification Channels, add a new PagerDuty channel

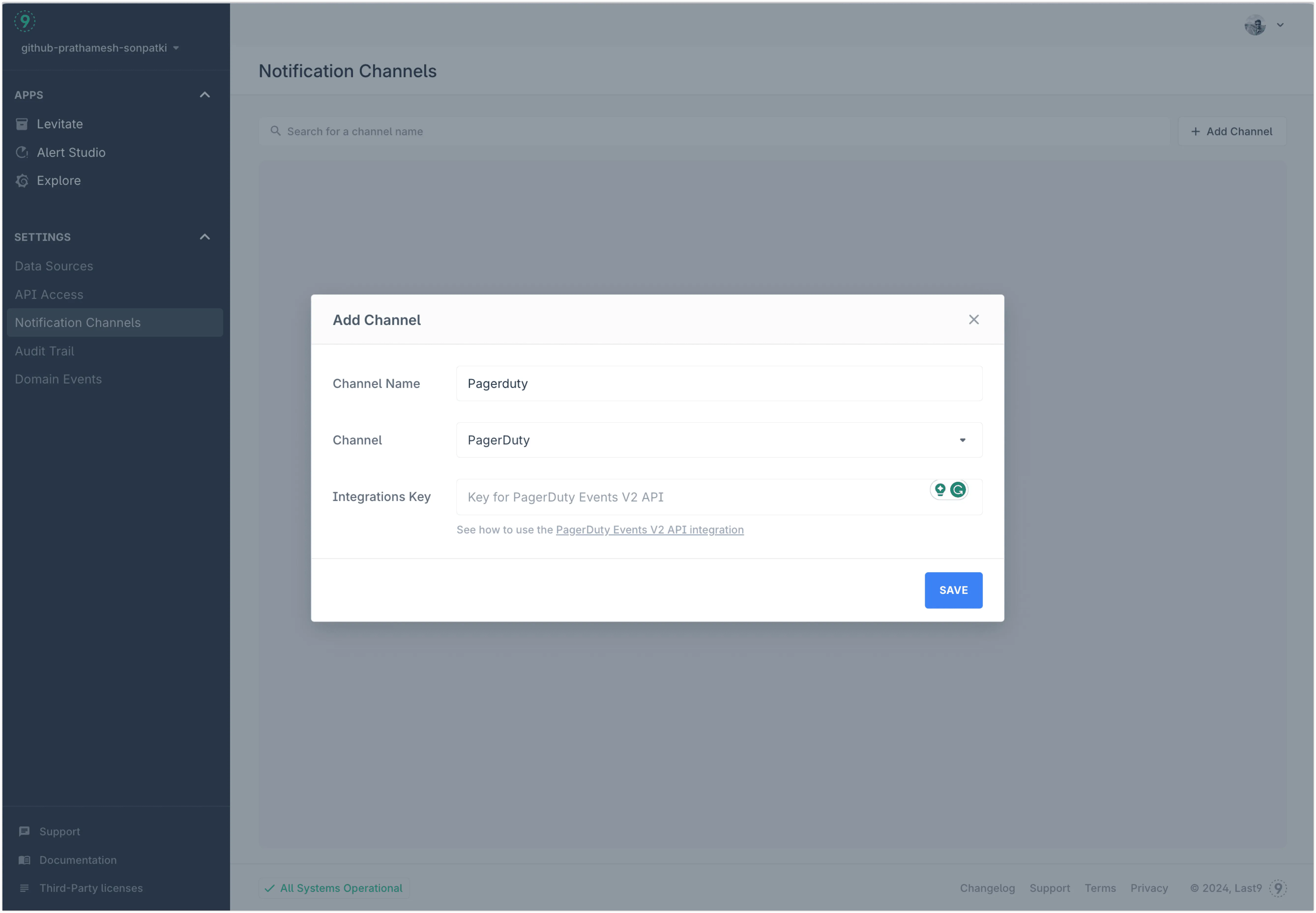

2. Add the API key copied from Pagerduty integration in the Integration Key field

3. By default it is not assigned to any alert group. You can assign it to the alert group either via IaC flow or manually once alert rules are added to an alert group.

Assigning a notification channel to an alert group

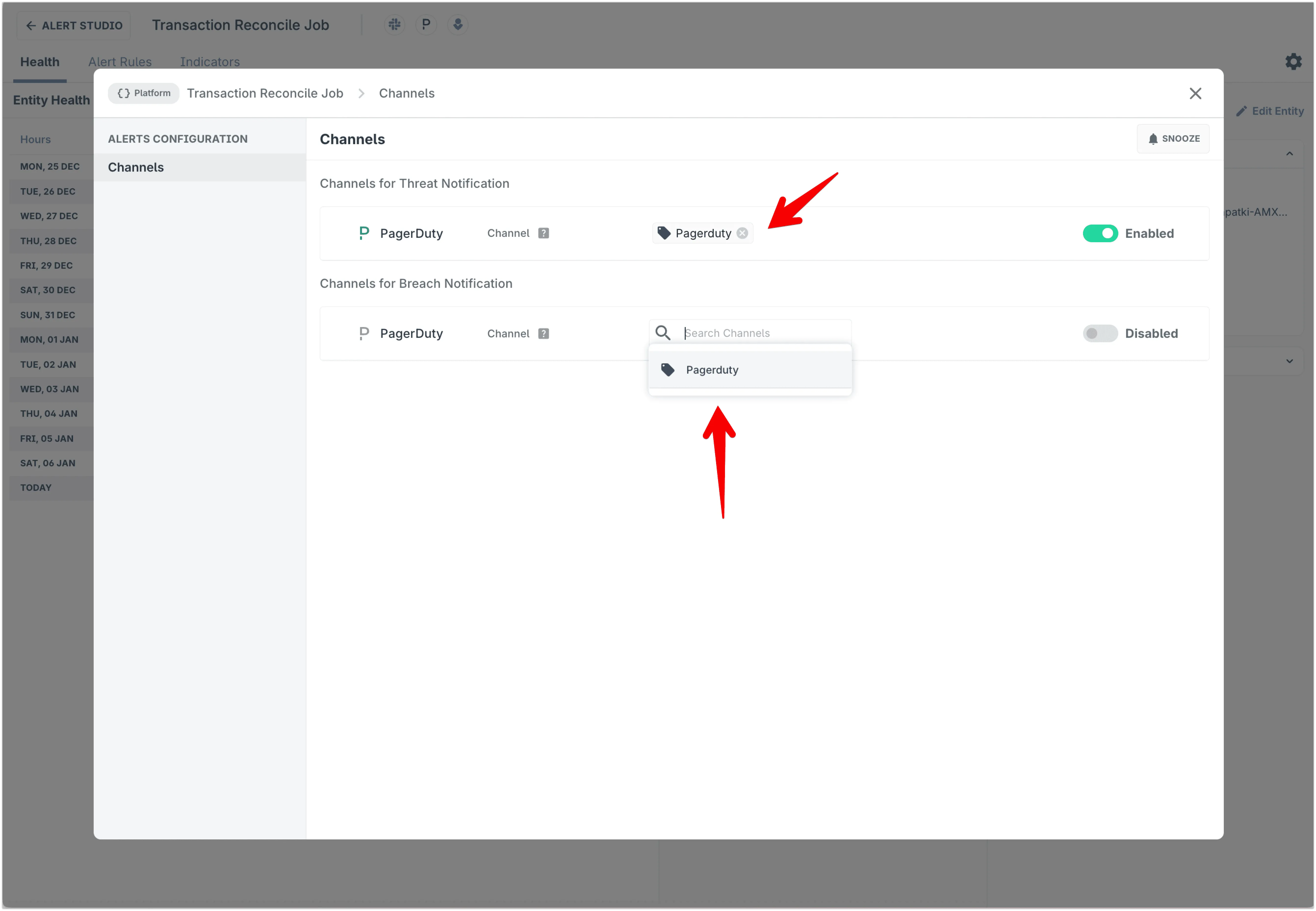

First navigate to the alert group and click on Pagerduty icon.

Select from the dropdown which Notification channel you want to select from the dropdown.

---

Notification Payload

Use these JSON fields for custom incident details, automation, alert enrichment, or integrating with other tools.

PagerDuty field	Type	Description
payload	object
payload.summary	string	Title for the incident
payload.timestamp	timestamp	The ending time of this alert, in ISO 8601 format
payload.severity	string	critical / warning for alerts marked as breach/threat in alert rule
payload.source	string	Dedup key for the incident
payload.component	string	Empty
payload.group	string	Dedup key for the incident
payload.class	string	Alert Rule Type
payload.custom_details	object	Described below
routing_key	string	PagerDuty integration key
event_action	string	’trigger’ for active notifications, ‘resolve’ for resolved notifications
dedup_key	string	Dedup key for the incident
client	string	”Last9 Dashboard”
client_url	string	Link to health dashboard for the alert in Last9
links	array of objects	Empty array
images	array of objects	Empty array

Custom Details

• alert_condition - Condition set on alert. Static alerts, it is of the format.expr > 10 based on the threshold configured. For pattern-based alerts, it is of the format algo_type(tunable, expr). For example, for a high spike alert set with tunable 3, this would be high_spike(3, expr)
• algo_type - Type of alert (static_threshold, increasing_changepoint etc)
• client_url - Link to the health dashboard for this alert on Last9
• description - Description of the alert. If a description is provided while configuring the rule, it appears here. Otherwise, a default description based on the algorithm, indicator, and entity is shown
• start - Starting time of this alert, in ISO 8601 format
• end- Ending time of this alert, in ISO 8601 format
• expression - Name of the indicator
• entity_name - Entity name
• entity_type - Entity type
• entity_team - Entity team. Is None if not assigned
• entity_tier - Entity tier. Is None if not assigned
• entity_workspace - Entity workspace. Is None if not assigned
• entity_namespace - Entity namespace. Is None if not assigned
• severity - Severity of the alert (breach/ threat)
• notification_call - Whether this alert is sent for the first time or repeated (first/ repeat)
• runbook - Link to the runbook for this alert (has to be configured while setting up alert). This key is omitted if the runbook isn’t configured
• If the entity under alert has tags associated with it, they are included in custom details as tag_<tag_name> = true
• time_in_alert - Duration for which this alert was observed. E.g., 8 in 10 minutes.

---

Troubleshooting

Please get in touch with us on Discord or Email if you have any questions.
