Application Sessions

Analyze user journeys, session duration, and engagement patterns to understand how users navigate through your application.

The Sessions tab in Discover > Applications provides detailed insights into user behavior patterns, session duration, and navigation paths. Understand how users interact with your application and identify drop-off points or problematic user flows.

Understanding Sessions and Views

What is a Session?

A session represents a period of continuous user activity. The scoping rules differ by platform:

Web

• Tab-based: each browser tab creates a separate session, even for the same user
• Maximum duration: sessions automatically end after 4 hours. If a user is actively browsing when the 4-hour limit is reached, a new session begins automatically
• Independent tracking: multiple tabs from the same user are tracked as separate sessions

Mobile

• App-install-based: one session per app install at a time — not per tab. Multiple app launches within the idle window join the same session.
• Idle timeout: sessions roll over when the app stays backgrounded past the SDK’s idle threshold
• Maximum duration: sessions also roll over when they exceed the configured max duration, matching web behavior
• Session-preserving operations: foregrounding within the idle window and identifying a user do not change session.id. From mobile SDK 1.6.9 (iOS and Android), flush() also preserves the active session; shutdown() intentionally ends it.

What is a View?

A view represents a discrete user-facing screen within a session.

Web

• A view is a page load. Only actual page navigation creates new views — query parameter changes (e.g. /products?category=shoes → /products?category=shirts) do not create new views.

Mobile

• A view is a screen transition: Activity lifecycle on Android, view-controller lifecycle on iOS, NavigatorObserver push on Flutter, React Navigation state change on React Native. Screen name comes from the SDK’s automatic tracking or an explicit startView(name) call.

Accessing Session Analysis

1. Navigate to Discover > Applications in Last9
2. Click the Sessions tab
3. Choose your version and environment version from the top filters
4. Set your desired time range using the date picker

Session Overview Table

The main interface displays a list of user sessions with key metrics:

• Session Start Time: when the session began
• Session ID: unique identifier
• User: user associated with the session (set via identify())
• Duration: total time from session start to last activity
• Views: pages viewed (web) or screens opened (mobile)
• Views with Errors: count of views that experienced errors
• First / Last — the entry and exit point of the session:
  • Web: URL path (path attribute)
  • Mobile: screen name (view.name attribute)

This table helps identify long-duration (engaged) sessions, short (bounce) sessions, error-prone sessions, and common entry/exit patterns.

Custom attributes added via L9RUM.spanAttributes() (web) or L9Rum.spanAttributes() (mobile) become available as filters for isolating sessions by organization, workspace, or other business dimensions.

Individual Session Details

Click on any session row to open the session detail panel.

Session Metadata

Each session provides context appropriate to its platform:

Web

• Browser: Chrome, Firefox, Safari, etc.
• Operating System: macOS, Windows, Linux, iOS, Android (browser platform)
• IP Address: user’s network location
• Geolocation: country, region, city (when available)
• Session Duration: total time from first to last page view

Mobile

• OS: Android / iOS name and version
• Device: brand and model (e.g. Samsung Galaxy S23, iPhone 15 Pro)
• App Version: release version the user was on
• Network Type: WiFi, cellular, offline
• Geolocation: country and city, when supplied through the SDK’s resourceAttributes
• Session Duration: total time from session start to last activity

View Timeline

The timeline shows the complete sequence of views in the session. Use the quick-filter chips to narrow down which views are shown:

Chip	Matches views where…
Has Exceptions	The view span has StatusCode = Error, an ANR signal, or a recorded exception
Has ANR	An Application Not Responding event was recorded on the view (mobile only)
Has Custom Events	At least one custom event (L9Rum.addEvent) occurred during the view
Has HTTP Errors	At least one outgoing API call returned HTTP 4xx/5xx, or a GraphQL call on HTTP 200 returned logical errors (graphql.error.count > 0)

Quick-filter chips combine as OR — a view appears if it matches at least one active chip. The chip is disabled while the API-stats fetch is in flight; applying it before the fetch resolves would filter against an empty set.

When Has HTTP Errors is active, the APIs tab inside the selected view opens with Errors only pre-enabled, and shows a “Showing X out of Y network requests” count.

View Detail Tabs

Click any view in the timeline to open its detail panel. The panel is organized into tabs:

Tab	Contents
Attributes	View-level span attributes: view ID, screen name, path, duration, Web Vitals (web) or Mobile Vitals (mobile)
Backend	Outgoing HTTP client requests correlated to backend traces. Each row links to the full trace in the Traces explorer (opens in a new tab)
Queries	Database query spans captured by the SDK’s network instrumentation
Assets	Static-asset requests (JS, CSS, images) with timing, size, and status

Every trace link in Backend, Queries, and Assets opens the Traces explorer in a new tab so you can inspect the full waterfall without losing the session context.

Web view details (Attributes tab)

• View Information: view ID, time spent, query parameters
• Page Attributes: host, path
• Browser Attributes: screen width/height, browser name and version, OS platform, touch support, network type, user agent
• Web Vitals: TTFB, LCP, FCP, CLS (per-view values)

Mobile view (screen) details (Attributes tab)

• View Information: view ID, time spent on screen, screen name
• App Attributes: app version, build ID, installation ID
• Device Attributes: OS name and version, device brand and model, network type
• Screen Load Time: duration from navigation intent to first frame (see Performance — Mobile Vitals)

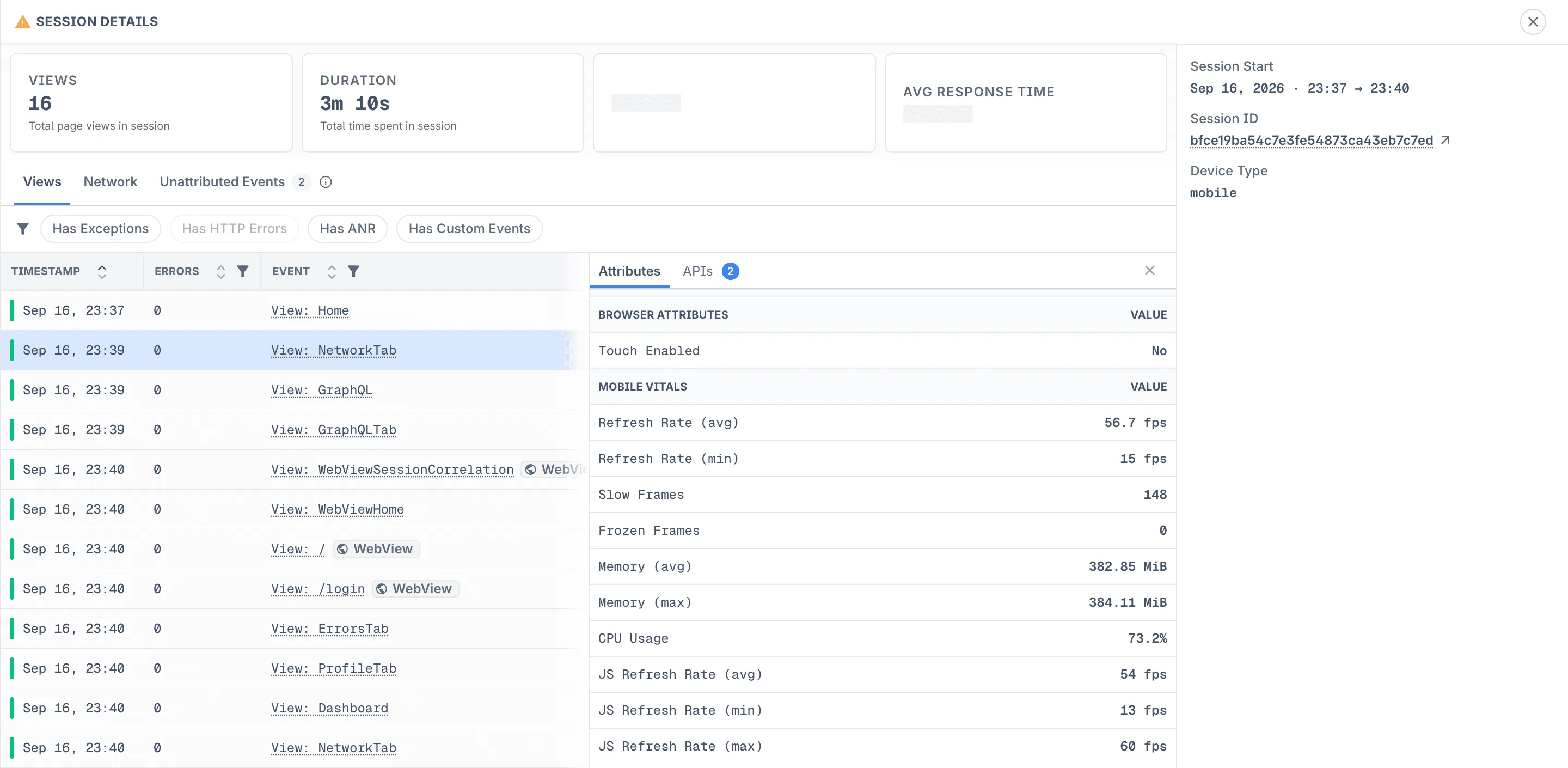

• Mobile Vitals (SDK v1.7.0+): refresh rate (avg/min), slow and frozen frame counts, memory (avg/max), CPU usage, and JS refresh rate on React Native. Attribute definitions are in the per-platform SDK docs, for example Android per-view performance vitals.

Backend Trace Correlation

Every outgoing HTTP request from the SDK includes a W3C traceparent header so the backend span shares a traceId with the client. The session timeline surfaces these trace links, letting you:

• Follow requests end-to-end from client to backend services
• Identify whether delays come from client, network, or backend
• Verify trace headers are being sent to the correct services

Configuration per platform:

• Web — enable network.backendCorrelation. See Web RUM SDK — Backend Trace Correlation.
• Mobile — networkInstrumentation: true is sufficient; traceparent is injected automatically by the OkHttp interceptor (Android), URLProtocol (iOS), fetch/XHR wrapper (React Native), or HttpOverrides (Flutter). Session ID propagation requires enabling baggage — see the Session Correlation doc.

GraphQL network operations

The session Backend tab shows GraphQL client spans across all traces in the session, not just the currently selected View trace. This means a GraphQL call recorded on a different trace within the same session still appears in the session investigation.

GraphQL logical errors — where the HTTP response is 200 but the GraphQL payload contains errors (STATUS_CODE_ERROR) — are classified as failed API operations, not JavaScript exceptions. They appear in:

• Endpoint health and error rate in the Network view
• The Has HTTP Errors quick-filter chip
• Error counts in status breakdown and sparklines

A GraphQL call matching both HTTP failure and a logical-error signal is counted once.

Custom Events in Timeline

Events tracked with L9RUM.addEvent() (web) or L9Rum.addEvent() (mobile) appear in the session timeline alongside views and errors. Events automatically include session and view context, helping you understand how user actions relate to performance and error patterns.

Searchable Event Attributes:

Custom event attributes are fully searchable, enabling you to filter sessions based on specific event data. For example:

• E-commerce: Filter by attributes['merchant_id'], attributes['cart_value'], or attributes['payment_method']
• SaaS Applications: Search by attributes['workspace_id'], attributes['feature_flag'], or attributes['subscription_tier']
• Content Platforms: Query using attributes['content_id'], attributes['category'], or attributes['user_role']

This eliminates the need to emit duplicate log entries for custom event searchability — query span events directly in the RUM interface.

Filtering and Search

Use the filter bar to narrow the sessions list. Filters run across any span inside a session: a session matches when at least one of its spans satisfies each active filter group. This means filters like app.screen.name work correctly on mobile even when the attribute lives on a child span of the View span rather than the View span itself.

Standard dimension filters

Filter	Notes
application, environment, version	Top-level dimension chips, always available
app.screen.name	Screen visited at any point in the session (mobile)
path	URL path visited at any point in the session (web)
Any custom span attribute	Attributes from L9RUM.spanAttributes() or individual spans

Event attribute filters

Prefix event attributes with event_:

Filter key	Matches sessions where…
event_name	A custom event with that exact name occurred (e.g., event_name = webview_page_load_start). The reserved value exception is excluded from this filter
event_<attr>	A custom event has attribute <attr> matching the value (e.g., event_merchant_id = 42)

event_name and event_<attr> can be combined. Filters within the same key group are OR; filters across different keys are AND.

Time-Based Filtering:

• Sessions within specific time windows
• Peak usage periods
• Post-deployment sessions
• Maintenance window impacts

Best Practices

• Track Critical User Journeys: Monitor important conversion flows and business-critical paths
• Investigate High-Error Sessions: Sessions with multiple errors often reveal systemic issues
• Analyze Bounce Patterns: Short sessions with single page views might indicate problems
• Monitor Engagement Metrics: Track average session duration and pages per session trends
• Correlate with Performance: Compare session quality with Web Vitals performance
• Regular Pattern Review: Check session patterns weekly for unusual behavior or trends
• User Experience Validation: Use session data to validate UX design decisions
• Maintain Context: Refresh L9RUM.spanAttributes() on route changes so filters stay accurate

---

Troubleshooting

• Custom events not appearing? Confirm L9RUM.addEvent() is called after SDK initialization and event names are non-empty.
• Trace links missing? Verify network.backendCorrelation.enabled is true and target APIs accept trace headers (check DevTools for CORS issues).
• app.screen.name filter returns zero sessions? Make sure you are on a build that includes the server-side session filtering fix. Update to the latest SDK version. The filter now correctly matches any span inside the session; older product builds only matched Session Start/End spans.
• event_name filter not autocompleting? Custom event names are scoped to the selected time range. Widen the time range or verify L9Rum.addEvent is firing the expected name.
• Has HTTP Errors chip disabled? The chip is gated until the API-stats fetch resolves. Wait for the spinner to clear before applying it.
• GraphQL errors appear as JS exceptions instead of failed API calls? Ensure the SDK’s network instrumentation is enabled and the GraphQL client propagates STATUS_CODE_ERROR on logical-error responses. See the Backend tab — GraphQL spans should show graphql.error.count when present.
• Missing web geolocation data? Enable geoIpEnabled and omit geoAttributesOverride to use GeoJS. The lookup must succeed; network restrictions can prevent enrichment. Providing an override object disables the lookup, and omitted fields stay unset. See web geo configuration.
• Missing mobile country or city? Android, iOS, React Native, and Flutter SDKs do not automatically infer geolocation. Supply enduser.geo.country, enduser.geo.country_code, and enduser.geo.city as string resource attributes at initialization, omitting unknown values. See the React Native example. These session fields read resource attributes; user identity or span attributes do not populate them.
