Send data using AWS PrivateLink
This guide walks you through how to configure AWS PrivateLink for use with Last9 will send read and write requests over the private network.
The process consists of configuring an internal endpoint in your VPC, which can talk to the Last9 endpoint without going via a public network.
Setup#Copy link
Get Last9 PrivateLink Service name#Copy link
Currently, Last9 supports three regions - eu-west-1, us-east-1 and
ap-south-1.
You can choose the service name from the following list.
| Region | Type | Service Name | DNS |
|---|---|---|---|
eu-west-1 | Write | com.amazonaws.vpce.eu-west-1.vpce-svc-0381436dec59e8895 | https://app-tsdb-euw1.last9.io |
eu-west-1 | Read | com.amazonaws.vpce.eu-west-1.vpce-svc-0a101a671bd82e759 | https://read-app-tsdb-euw1.last9.io |
us-east-1 | Write | com.amazonaws.vpce.us-east-1.vpce-svc-0eda8f4ecd25af01f | https://app-tsdb-use1.last9.io |
us-east-1 | Read | com.amazonaws.vpce.us-east-1.vpce-svc-0fb0502d1f58dc1bb | https://read-app-tsdb-use1.last9.io |
ap-south-1 | Write | com.amazonaws.vpce.ap-south-1.vpce-svc-0240de6d26b096123 | https://app-tsdb.last9.io |
ap-south-1 | Read | com.amazonaws.vpce.ap-south-1.vpce-svc-01c9bdbb02e34fe2c | https://read-app-tsdb.last9.io |
us-east-1 | Read/Write | com.amazonaws.vpce.us-east-1.vpce-svc-06931cb6d013ad0fc | https://otlp.last9.io |
ap-south-1 | Read/Write | com.amazonaws.vpce.ap-south-1.vpce-svc-026c2a0d782b7ef32 | https://otlp-aps1.last9.io |
ap-southeast-1 | Read/Write | com.amazonaws.vpce.ap-southeast-1.vpce-svc-0f8965c5096ad1f65 | https://otlp-apse1.last9.io |
Create an endpoint in your VPC#Copy link

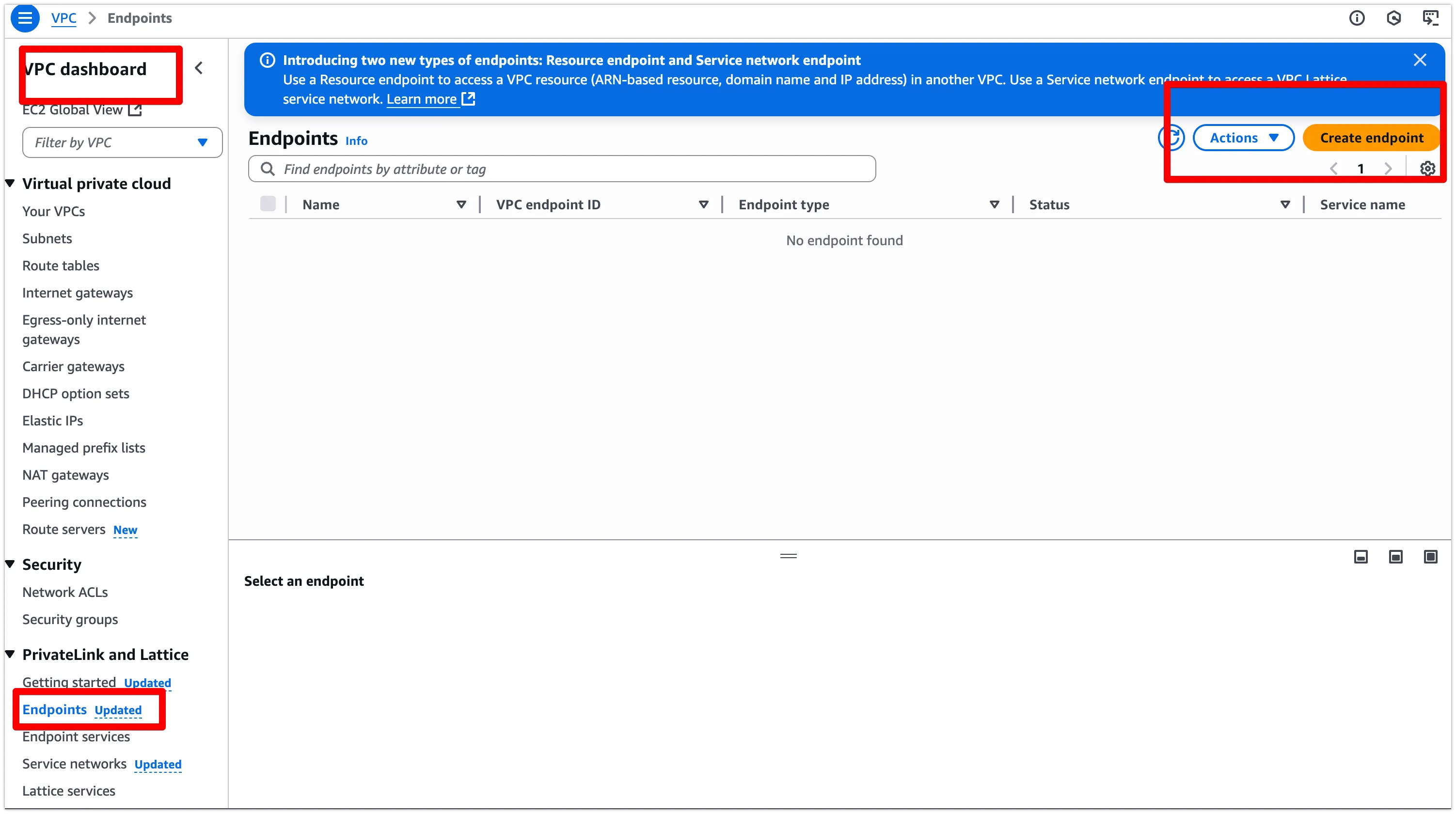

Navigate to the VPC section and select Endpoints in the left sidebar.

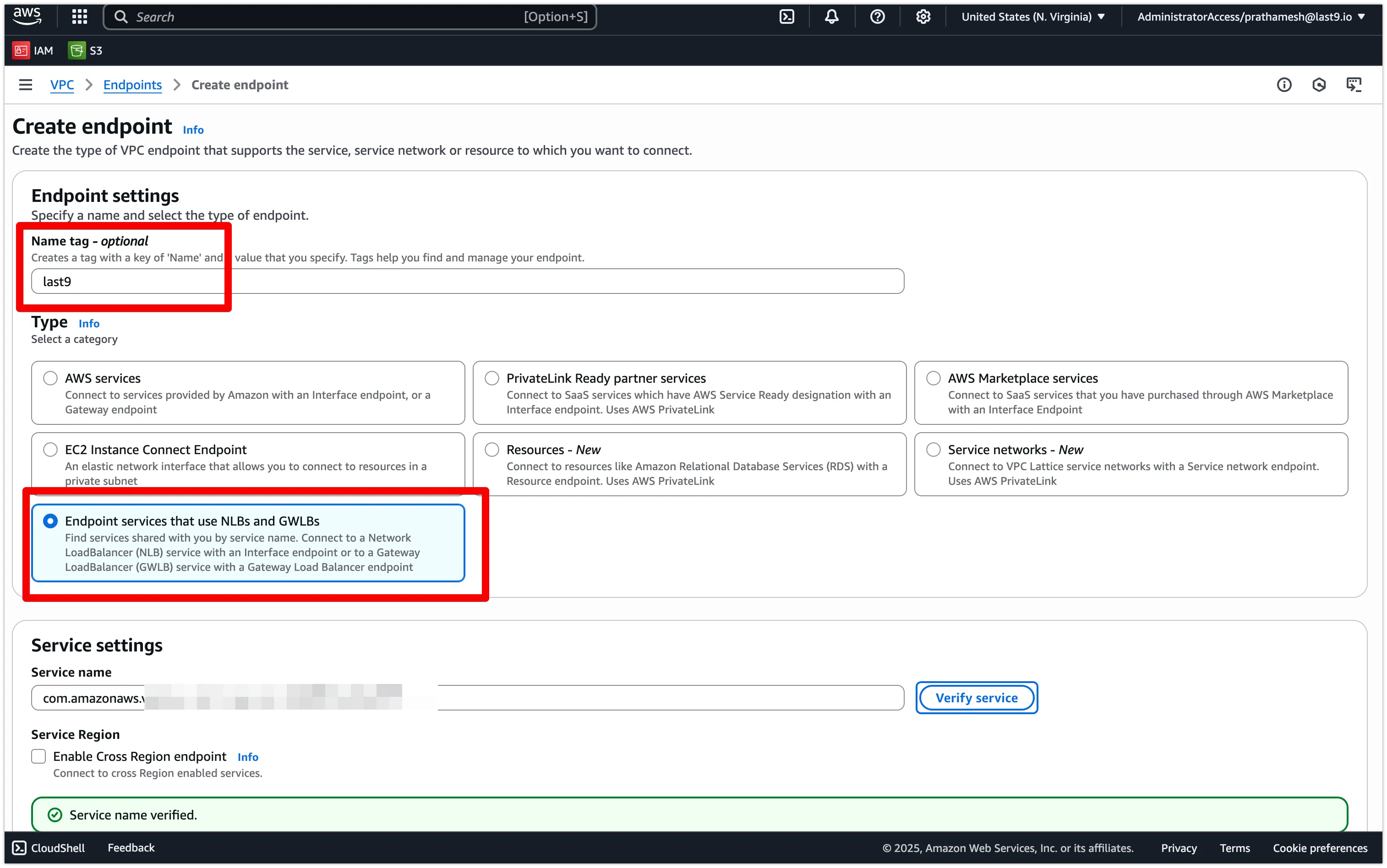

Click on Create Endpoint in the top right corner. Enter an appropriate
Name tag, and Select Other endpoint services .
Enter the Service name provided by Last9 in the earlier step and Click
Verify service.
Additional settings#Copy link

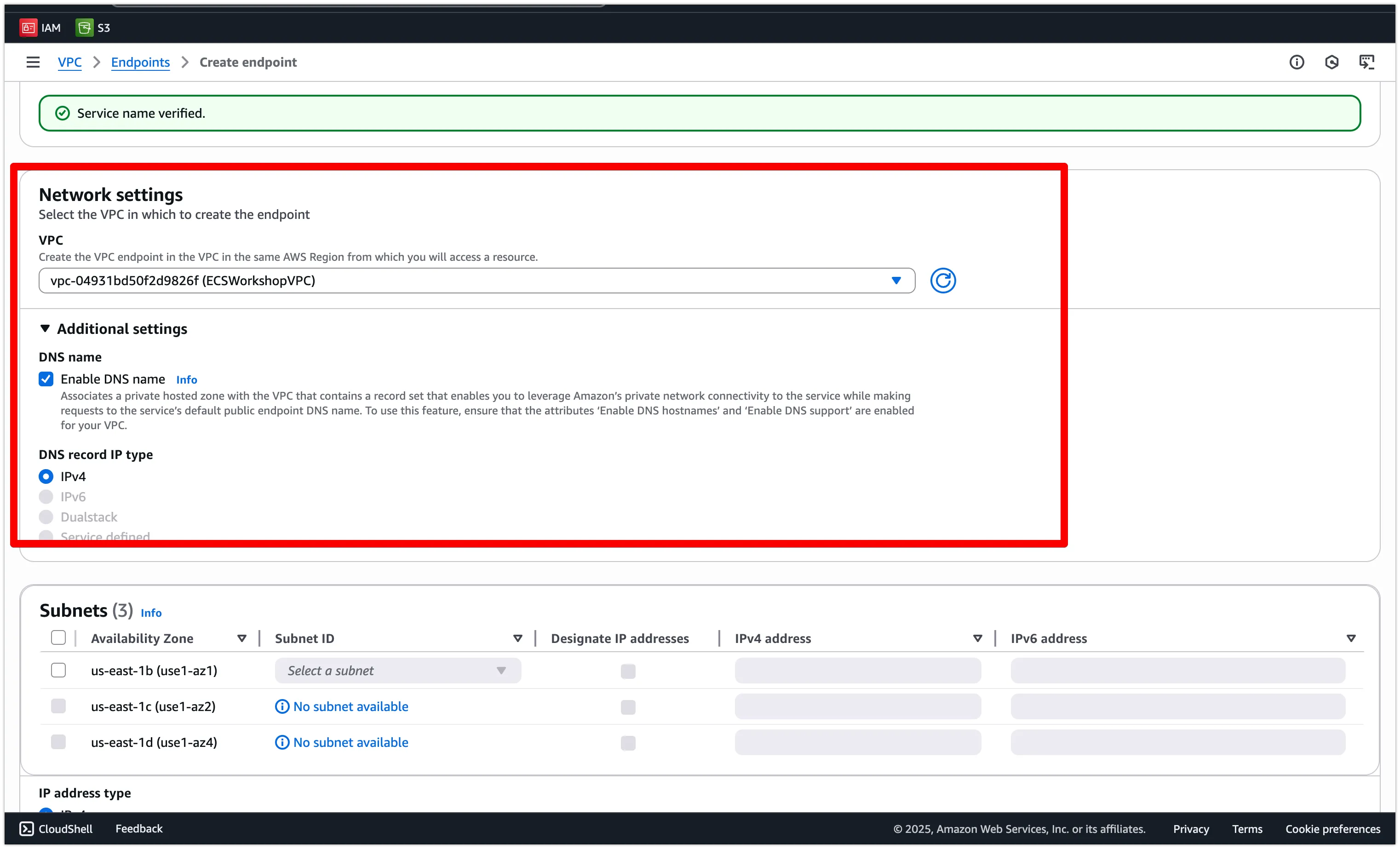

- Select the VPC for the endpoint, and in additional settings, check the box for
Enable DNS Name.

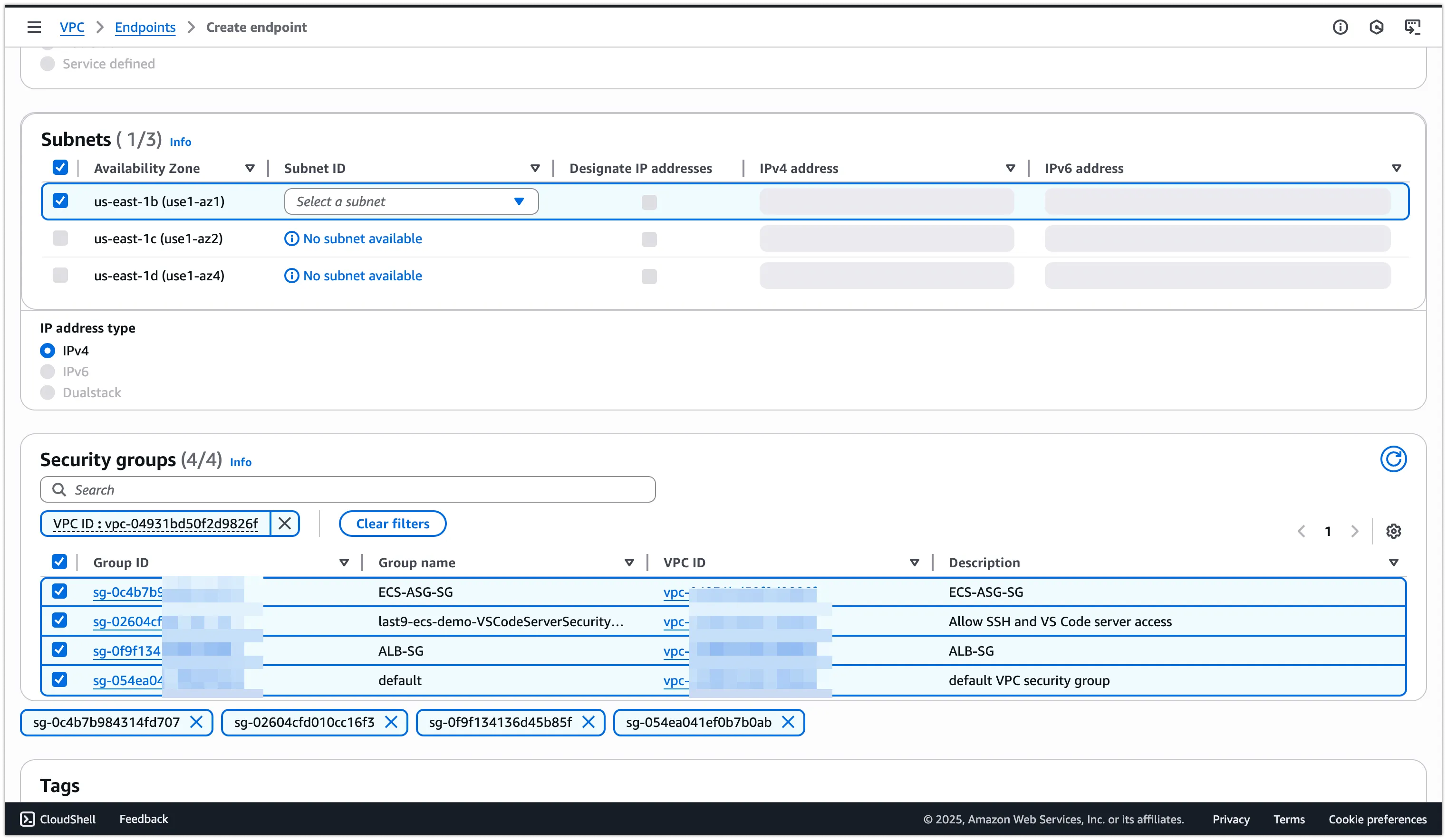

- Select the subnets where you are running the workloads that will read or write
to Last9.
- Attach a security group to the endpoint; the endpoint must allow traffic on port 443 from your origin VPC or the specific IP address where the requests originate.
- Note: For any on-premise Last9 setups, the endpoint must allow traffic for
ports 80 and 443.
Verification#Copy link

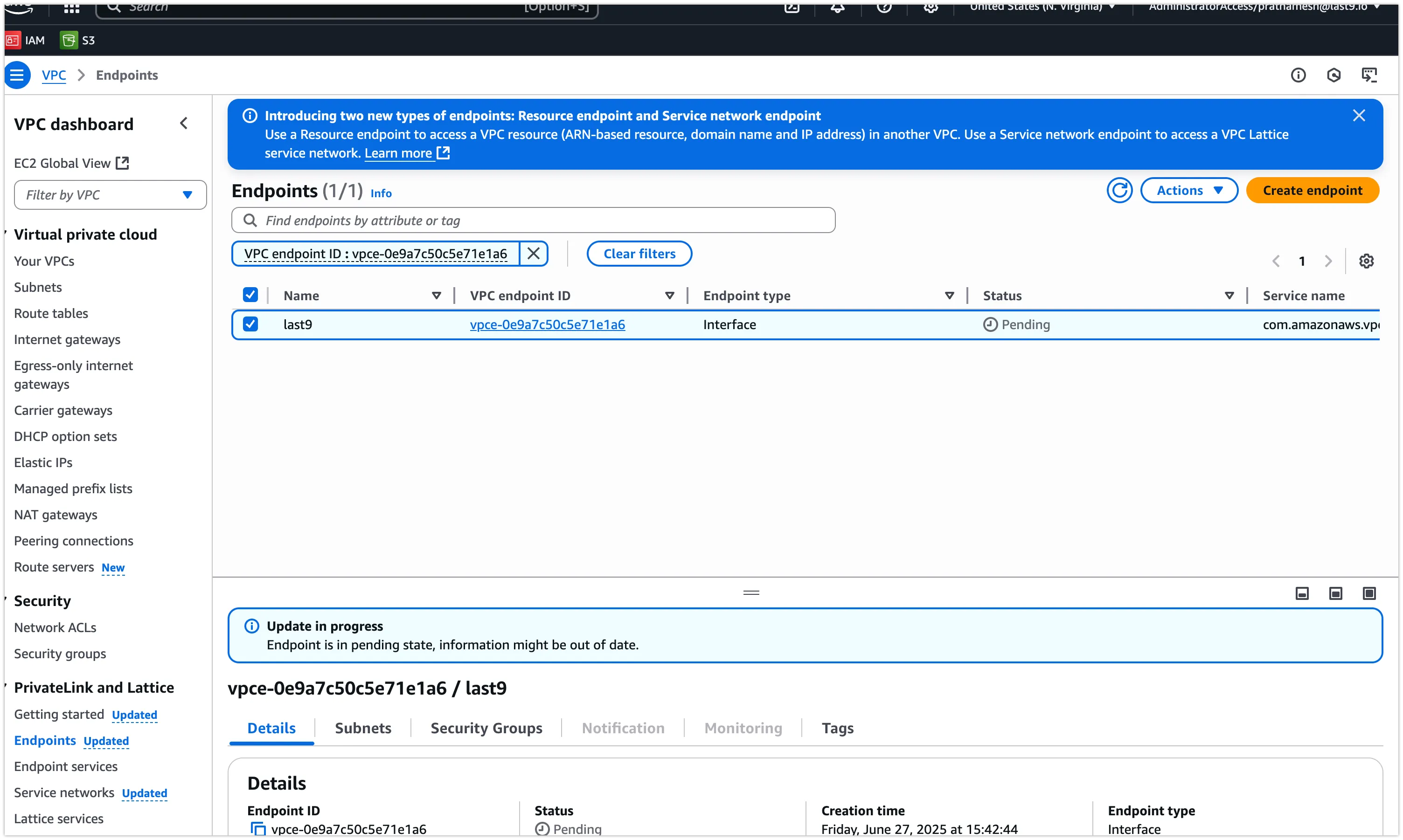

After the Endpoint status becomes available, validate that the DNS records change from any machine inside a subnet in your VPC for which the Endpoint is enabled.
For example, dig app-tsdb.last9.io should not return the public IP address;
instead, it should return the private IP address of the Endpoint we just
created.
That’s all. Happy sending logs, metrics, and traces to Last9 using PrivateLink.
Troubleshooting#Copy link
Please get in touch with us on Discord or Email if you have any questions.
